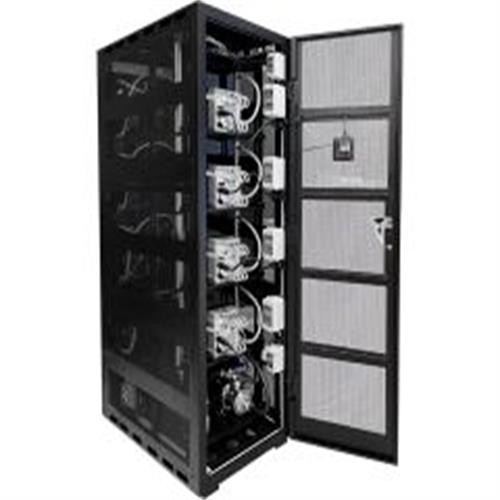

24kW 4 Hydro-cooling Miner Rack
Bitmain Antrack V1 Hydro Cooling System for 4units S21 Hydro S19 Hydro Rack Cabinet
ANTRACK V1
Function BTC/BCH/BSV SHA256 Hydro-cooling Miner
Specifications 24kW 4 Hydro-cooling Miner Rack
Specification Details For ANTRACK
Product Glance
Model ANTRACK
Version V1
Capacity 4 units ANTMINER (S21 Hyd.)
Maximum load,kW 24
Detailed Characteristics
Hardware configuration
Size (width*height*depth),mm 600*2000*1000
Net weight, kg 300
Network connection mode EJ45 Ethernet 10/100M
Power supply
Power supply AC input voltage, Volt(1-1) 380~415
Power supply AC input frequency range, Hz 50~60
Power supply AC Input current, Amp(1-2) 80
Environment requirements
Ambient temperature, °C 15~45
Water flow, L/min 32.0~40.0
Water pressure, bar ≤3.5
Working fluid(1-3) Deionized water/Pure water
Liquid PH 8.5~9.5
Storage temperature, °C -20~70
Operation humidity(non-condensing), RH 10~90%
NOTE:
(1-1) Caution: Wrong input voltage may probably cause miner damaged
(1-2) Three-phase AC input.
(1-3) If the water conductivity is ≥100 μs/cm, the fluid must be replaced. The water conductivity is less than 20 μs/cm when the system is running at the first time.
